type
  kind = (aLeftFront, aLeftBack, aRightFront, aRightBack);
  location = (jLeft, jCenter, jRight);
  PColor = ^TColor;

var
  bilder: array of TBitmap = nil;

function wx(const w, b, m: integer): integer;
begin
  result := round(cos((pi / 180) * w - pi / 2) * (b / 2)) + m;
end;

procedure matrix(z: word = 0; Fontname: TFontname = '';
  Fontstyle: TFontstyles = []; Fontsize: integer = 0;
  Fontcolor: TColor = 0; Hintergrund: TColor = 0);
var
  x: integer;
begin
  for x := 0 to high(bilder) do
    bilder[x].Free;
  setlength(bilder, z);
  if z > 0 then
    for x := 0 to high(bilder) do begin
      bilder[x] := TBitmap.Create;
      with bilder[x], Canvas do begin
        Font.Name := Fontname;
        Font.style := Fontstyle;
        Font.Size := Fontsize;
        Font.Color := Fontcolor;
        Brush.Color := Hintergrund;
        Fillrect(cliprect);
      end;
    end;
end;

function klappen(bm: TBitmap; Ziel: TCanvas; x, y, winkel: integer; av: kind;
  wo: location; Rahmen: PColor): integer;
var
  mx, i, lk, dff, v, o, br, xx, yo, yu: integer;
  s, hv, h, st, a, k: single;
begin
  if Rahmen <> nil then
    ziel.Pen.color := Rahmen^;
  with bm do begin
    mx := x + round(width / 2);
    br := x + width;
    lk := wx((270 - winkel * 2), width, mx);
    dff := br - lk;
    if dff = 0 then st := 0 else
      st := width / dff;
    hv := (height * winkel) / 90;
    case av of
      aRightFront: begin
          v := 1;
          h := 0;
        end;
      aRightBack: begin
          v := -1;
          h := 0;
        end;
      aLeftFront: begin
          v := -1;
          h := hv / 4;
        end;
    else begin
        v := 1;
        h := -hv / 4;
      end;
    end;
    case wo of
      jRight: o := lk - x;
      jLeft: o := 0;
    else o := (lk - x) div 2;
    end;
    Result := br - lk + x;
    a := 0;
    s := 0;
    if dff = 0 then k := 0 else
      k := hv * v / (dff * 4);
    for i := lk to br do begin
      xx := o + i - lk + x;
      yo := round(y - a - h);
      yu := round(y + height + a + h);
      if (Rahmen <> nil) and ((i = lk) or (i = br)) then begin
        ziel.moveto(xx, yo);
        ziel.lineto(xx, yu);
      end else begin
        ziel.CopyRect(rect(xx, yo, xx + 1, yu),
          canvas, rect(round(s), 0, round(s + 1), height));
        if Rahmen <> nil then begin
          setpixel(ziel.Handle, xx, yo, Rahmen^);
          setpixel(ziel.Handle, xx, yu, Rahmen^);
        end;
      end;
      a := a + k;
      s := s + st;
    end;
  end;
end;

function zeige(ziel: TCanvas; welch, x, y, abstand: integer;
  Grad: byte; av: kind; st: location; Rahmen: PColor): integer;
begin
  while Grad > 90 do dec(grad, 90);
  Result := klappen(bilder[welch], ziel, x, y, Grad, av, st, Rahmen)
    + abstand;
end;

procedure build(txt: string; Fontname: TFontname; Fontstyle: TFontStyles;
  Fontsize, Rand: integer; Fontcolor, Hintergrund: TColor; Rahmen: PColor);
var
  lg, x, z, w, g: integer;
  sz: TSize;
begin
  lg := length(txt);
  matrix(lg, Fontname, Fontstyle, Fontsize, Fontcolor, Hintergrund);
  g := 0;
  for x := 0 to pred(lg) do
    with bilder[x].canvas do begin
      w := textwidth(txt[succ(x)]);
      if w > g then g := w;
    end;
  for x := 0 to pred(lg) do
    with bilder[x], canvas do begin
      z := ord(Rahmen <> nil);
      sz := textextent(txt[succ(x)]);
      width := g + 2 * (rand + z);
      height := sz.cy;
      textout((width - sz.cx) div 2, 0, txt[succ(x)]);
    end;
end;

procedure TForm1.FormDestroy(Sender: TObject);
begin
  matrix;
end;

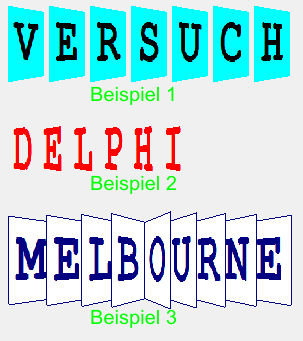

// ====================== Beispiele ====================

procedure TForm1.Button1Click(Sender: TObject);
var
  i, x, y, Rand, Winkel, Fontsize, Abstand: integer;
begin
  Fontsize := 35;
  Rand := 10;
  build('VERSUCH', 'Courier New',
    [fsbold], Fontsize, Rand, clBlack, clAqua, nil);
  Abstand := 5;
  Winkel := 35;
  x := 15;
  y := 20;
  for i := 0 to high(bilder) do
    x := zeige(canvas, i, x, y, Abstand, Winkel, aLeftFront, jLeft, nil);
end;


procedure TForm1.Button2Click(Sender: TObject);
var
  i, x, y, Rand, Winkel, Fontsize, Abstand: integer;
begin
  Fontsize := 40;
  Rand := 10;
  build('DELPHI', 'Courier New',
    [fsbold], Fontsize, Rand, clRed, clBtnFace, nil);
  Abstand := 0;
  Winkel := 45;
  x := 15;
  y := 120;
  for i := 0 to high(bilder) do
    x := zeige(canvas, i, x, y, Abstand, Winkel, aRightFront, jLeft, nil);
end;


var
  arr: array[0..4] of integer = (0, 30, 57, 82, 104);

procedure TForm1.Button3Click(Sender: TObject);
var
  i, x, y, h, Rand, Winkel, Fontsize, Abstand: integer;
  Rahmen: PColor;
  Rahmenfarbe: TColor;
begin
  Rahmenfarbe := clNavy;
  Rahmen := @Rahmenfarbe;
  Fontsize := 40;
  Rand := 10;
  build('MELBOURNE', 'Courier New',
    [fsbold], Fontsize, Rand, clNavy, clWhite, Rahmen);
  h := high(bilder);
  Abstand := -8;
  Winkel := 30;
  x := 15;
  y := 230;
  for i := 0 to 3 do
    x := zeige(canvas, i, x, y, Abstand, Winkel + i * 4,
      aLeftFront, jLeft, Rahmen);
  x := 255;
  for i := 0 to 4 do
    zeige(canvas, h - i, x - arr[i], y, Abstand,
      Winkel + succ(i) * 4, aRightFront, jLeft, Rahmen);
end;
