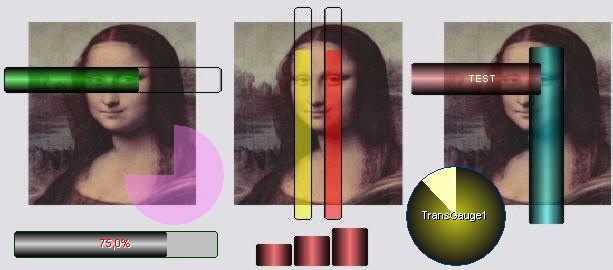

Beispiel für 3 bewegte Gauges (siehe Bild):

procedure TForm1.FormCreate(Sender: TObject);
begin
  doublebuffered := true;
  TransGauge1.Tag := 1;
  TransGauge1.Progress := 100;
  TransGauge2.Progress := 50;
  TransGauge3.Progress := 75;
  Timer1.Interval := 80;
end;

procedure TForm1.Timer1Timer(Sender: TObject);
  procedure doit(tg: TTransGauge);
  begin
    if tg.tag = 0 then begin
      tg.progress := tg.progress - 5;
      if tg.progress = 50 then tg.tag := 1;
    end else begin
      tg.progress := tg.progress + 5;
      if tg.progress = 100 then tg.tag := 0;
    end;
  end;
begin
  doit(TransGauge1);
  doit(TransGauge2);
  doit(TransGauge3);
end;

unit TransGauge;

interface

uses
  Windows, Messages, SysUtils, Classes, Graphics, Controls;

type
  TFontKind = (tgHorizontal, tgVertical);
  TGaugeKind = (tgHorizontalBar, tgVerticalBar, tgPie);
  TGaugeText = (tgCaption, tgProgress, tgPercent, tgNone);
  TIntens = 0..5;
  TTransGauge = class(TControl)
  private
    FR, FG, FB, FFF, FRD, FGD, FBD, FXR, FXG, FXB, FTR, FTG, FTB: Byte;
    FStelle, FBer, FMin, FMax, FPos, FLang: integer;
    FFore, FFrameCl, F2Cl, FDisCl, FDisF: TColor;
    FFrame, Ftrans, FFlat, FShadow: boolean;
    FNotify: TNotifyEvent;
    FBmp, FHlp: TBitmap;
    FDrctn: TFontKind;
    FKind: TGaugeKind;
    FText: TGaugeText;
    FCanvas: TCanvas;
    FProz: single;
    FF: TIntens;
  protected
    procedure CMFontChanged(var aMsg: TMessage); message CM_FONTCHANGED;
    procedure CMCOLOR(var M: TMessage); message CM_COLORCHANGED;
    procedure WMPaint(var aMsg: TWMPaint); message WM_PAINT;
    procedure setpix(i, d: integer; var p1, p2, p3: byte);
    procedure setEnabled(Value: Boolean); override;
    function setbyte(b, m, d: integer): byte;
    procedure setText(t: TGaugeText);
    procedure setDrctn(d: TFontKind);
    procedure setKind(k: TGaugeKind);
    procedure setFrameCl(c: TColor);
    procedure setShadow(b: boolean);
    procedure setFrame(b: boolean);
    procedure setTrans(b: boolean);
    procedure setFlat(b: boolean);
    procedure setDisCl(c: TColor);
    procedure setPos(i: integer);
    procedure setMin(i: integer);
    procedure setMax(i: integer);
    procedure setFore(c: TColor);
    procedure setF2Cl(c: TColor);
    procedure setDisF(c: TColor);
    procedure setFF(t: TIntens);
    procedure settranscol;
    procedure FontSwitch;
    procedure setBitmap;
    procedure setBereich;
    procedure makefont;
    procedure setrgb;
    procedure sichtw;
    procedure sichts;
    procedure sichtk;
  public
    procedure WMText(var M: TMessage); message WM_SetText;
    constructor Create(AOwner: TComponent); override;
    property Canvas: TCanvas read FCanvas;
    destructor Destroy; override;
    procedure Resize; override;
    procedure Loaded; override;
  published
    property ProgressDisabledColor: TColor read FDisCl write setDisCl;
    property OnProgress: TNotifyEvent read FNotify write FNotify;
    property FontDirection: TFontKind read FDrctn write setDrctn;
    property FrameColor: TColor read FFrameCl write setFrameCl;
    property FontShadow: boolean read FShadow write setShadow;
    property FontShadowColor: TColor read F2Cl write setF2Cl;
    property FontDisabledColor: TColor read FDisF write setDisF;
    property Transparent: boolean read FTrans write setTrans;
    property ProgressColor: TColor read FFore write setFore;
    property TextMode: TGaugeText read FText write setText;
    property Frame: boolean read FFrame write setframe;
    property Kind: TGaugeKind read FKind write setKind;
    property Progress: integer read FPos write setPos;
    property Intensity: TIntens read FF write setFF;
    property FLat: boolean read FFlat write setFlat;
    property Min: integer read FMin write setMin;
    property Max: integer read FMax write setMax;
    property ParentShowHint;
    property ParentColor;
    property OnMouseDown;
    property ParentFont;
    property OnMouseUp;
    property ShowHint;
    property Enabled;
    property Visible;
    property Caption;
    property Color;
    property Font;
  end;

procedure Register;

implementation

procedure Register;
begin
  RegisterComponents('DBR', [TTransGauge]);
end;

constructor TTransGauge.Create(AOwner: TComponent);
begin
  inherited Create(AOwner);
  FCanvas := TCanvas.Create;
  FKind := tgHorizontalBar;
  FDrctn := tgHorizontal;
  FFrame := true;
  FTrans := true;
  FF := 4;
  FFF := 1;
  FG := 255;
  FR := 0;
  FB := FR;
  FFore := RGB(FR, FG, FB);
  FGD := 180;
  FRD := FGD;
  FBD := FGD;
  FDisCl := RGB(FRD, FGD, FBD);
  FMax := 100;
  width := 100;
  height := 100;
  FFrameCl := $4000;
  FBmp := TBitmap.create;
  Fbmp.pixelformat := pf24bit;
  FHlp := TBitmap.create;
  FHlp.pixelformat := pf24bit;
  Font.Color := clBlack;
  Font.Name := 'Arial';
  Font.Size := 8;
  F2Cl := clwhite;
  FDisF := F2Cl;
  setBitmap;
  setrgb;
  settranscol;
  FBmp.transparent := true;
end;

destructor TTransGauge.Destroy;
begin
  FHlp.free;
  FBmp.free;
  FCanvas.Free;
  inherited Destroy;
end;

procedure TTransGauge.WMPaint(var aMsg: TWMPaint);
var
  s: string;
  sz: TSize;
  rct: TRect;
  w, h: integer;
  procedure horzText(f: TColor);
  begin
    with FBmp.Canvas do begin
      if enabled then Font.Color := f
      else Font.Color := FDisF;
      drawtext(FBmp.Canvas.handle, pchar(s), -1, rct, dt_singleline
        or dt_center or dt_vcenter);
    end;
  end;
  procedure vertText(f: TColor; x, y: integer);
  begin
    with FBmp.Canvas do begin
      if enabled then Font.Color := f
      else Font.Color := FDisF;
      textrect(rct, x, y, s);
    end;
  end;
begin
  FCanvas.Handle := aMsg.DC;
  rct := rect(3, 2, width - 2, height - 2);
  FProz := FStelle * 100 / FBer;
  with FBmp, Canvas do begin
    copyrect(FBmp.Canvas.cliprect, FCanvas, FCanvas.cliprect);
    case FText of
      tgPercent: s := FormatFloat('0.0', FProz) + '%';
      tgProgress: s := FormatFloat('#,#0', FPos);
      tgCaption: s := caption;
    else s := '';
    end;
    if Ftrans then
      brush.style := bsClear
    else brush.color := color;
    if FFrame then Pen.color := FFrameCl
    else Pen.color := Transparentcolor;
    if FKind = tgPie then begin
      pen.style := psclear;
      Ellipse(0, 0, width, height);
    end else
      RoundRect(0, 0, width, height, 6, 6);
    if FKind = tgHorizontalBar then sichtw
    else if FKind = tgPie then sichtk
    else sichts;
    brush.style := bsClear;
    if s <> '' then begin
      makefont;
      sz := TextExtent(s);
      if FDrctn = tgVertical then begin
        w := (width - sz.cy) div 2;
        h := height - (height - sz.cx) div 2;
        if FShadow and enabled then vertText(F2Cl, w + 1, h - 1);
        vertText(self.Font.color, w, h);
      end else begin
        if FShadow and enabled then horzText(F2Cl);
        offsetrect(rct, -1, -1);
        horzText(self.Font.color);
      end;
    end;
  end;
  FCanvas.draw(0, 0, FBmp);
end;

procedure TTransGauge.setrgb;
begin
  if enabled then begin
    FXR := FR;
    FXG := FG;
    FXB := FB;
  end else begin
    FXR := FRD;
    FXG := FGD;
    FXB := FBD;
  end;
end;

function TTransGauge.setbyte(b, m, d: integer): byte;
begin
  result := (b div succ(FFF));
  if not FFLat then
    result := result * m div d;
end;

procedure TTransGauge.setpix(i, d: integer; var p1, p2, p3: byte);
var px1, px2, px3: byte;
begin
  if Ftrans then begin
    px1 := p1;
    px2 := p2;
    px3 := p3;
  end else begin
    px1 := $99;
    px2 := px1;
    px3 := px1;
  end;
  p1 := setbyte(FXB + px1 * FFF, i, d);
  p2 := setbyte(FXG + px2 * FFF, i, d);
  p3 := setbyte(FXR + px3 * FFF, i, d);
end;

procedure TTransGauge.sichts;
var x, y, by, bx, k, fy, bm, h: integer;
  pm: PBytearray;
begin
  bx := pred(width) * 3;
  by := (bx div 6) * 3; // Farbsicherheit. Nicht "bx div 2" !
  fy := height - FLang - 1;
  h := height - 2;
  for y := fy to h do begin
    pm := FBmp.scanline[y];
    k := ord((y = fy) or (y = h)) * 3;
    x := 3 + k;
    bm := bx - k;
    while x <= by do begin
      setpix(x, by, pm[x], pm[x + 1], pm[x + 2]);
      inc(x, 3);
    end;
    x := by + 3;
    while x < bm do begin
      setpix(bx - x, by, pm[x], pm[x + 1], pm[x + 2]);
      inc(x, 3);
    end;
  end;
end;

procedure TTransGauge.sichtw;
var x, y, b3, hy, hx, k, bm: integer;
  pm: PBytearray;
  procedure setk(b: boolean);
  begin
    k := ord(b) * 3;
    bm := b3 - k;
    x := 3 + k;
  end;
begin
  b3 := FLang * 3;
  hx := FBmp.height - 2;
  hy := hx div 2;
  for y := 1 to hy do begin
    setk(y = 1);
    pm := FBmp.scanline[y];
    while x <= bm do begin
      setpix(y, hy, pm[x], pm[x + 1], pm[x + 2]);
      inc(x, 3);
    end;
  end;
  for y := hy + 1 to hx do begin
    setk(y = hx);
    pm := FBmp.scanline[y];
    while x <= bm do begin
      setpix(hx - y, hy, pm[x], pm[x + 1], pm[x + 2]);
      inc(x, 3);
    end;
  end;
end;

procedure TTransGauge.sichtk;
var x, y, w, h, stp, b3, f, d: integer;
  winkel: single;
  pm, ph: PBytearray;
  p1, p2, p3, pf1, pf2, pf3: byte;
  procedure DrawRadial;
  var
    i: Integer;
    Rx, Gx, Bx: byte;
  begin
    with FHlp, Canvas do begin
      for i := 0 to stp do begin
        Rx := Round((FXR / stp) * i);
        Gx := Round((FXG / stp) * i);
        Bx := Round((FXB / stp) * i);
        Brush.Color := RGB(Rx, Gx, Bx);
        Pen.Color := Brush.Color;
        Ellipse(i, i, width - i, height - i);
      end;
    end;
  end;
begin
  w := width div 2;
  h := height div 2;
  b3 := width * 3;
  if h > w then stp := w else stp := h;
  case ff of
    0: f := 50;
    1: f := 110;
    2: f := 150;
    3: f := 175;
    4: f := 200
  else f := 255;
  end;
  d := 256 - f;
  with FHlp.canvas do begin
    brush.color := FBmp.transparentcolor;
    fillrect(cliprect);
    winkel := (FProz / 50) * pi;
    x := round(W * sin(winkel) + W);
    y := round(-H * cos(winkel) + H);
    drawradial;
    pen.color := FBmp.transparentcolor;
    brush.color := FBmp.transparentcolor;
    if FProz = 0 then
      ellipse(0, 0, width, height) else
      if FProz < 100 then
        pie(0, 0, width, height, W, 0, x, y);
    brush.style := bsclear;
    ellipse(0, 0, width, height);
  end;
  for y := 0 to height - 1 do begin
    x := 0;
    pm := FBMp.ScanLine[y];
    ph := FHlp.ScanLine[y];
    while x < b3 do begin
      if (ph[x] <> FTB) or (ph[x + 1] <> FTG) or (ph[x + 2] <> FTR)
        then begin

        if FTrans then begin
          p1 := pm[x];
          p2 := pm[x + 1];
          p3 := pm[x + 2];
        end else begin
          p1 := $50;
          p2 := p1;
          p3 := p1;
        end;
        if not FFLat then begin
          pf1 := ph[x];
          pf2 := ph[x + 1];
          pf3 := ph[x + 2];
        end else begin
          pf1 := FXB;
          pf2 := FXG;
          pf3 := FXR;
        end;
        pm[x] := ((pf1 * f) + p1 * d) shr 8;
        pm[x + 1] := ((pf2 * f) + p2 * d) shr 8;
        pm[x + 2] := ((pf3 * f) + p3 * d) shr 8;
      end;
      inc(x, 3);
    end;
  end;
  FBmp.Canvas.brush.style := bsClear;
  if FFrame then begin
    FBmp.canvas.pen.color := FFrameCl;
    FBmp.canvas.pen.style := psSolid;
    FBmp.canvas.ellipse(0, 0, width, height);
  end;
end;

procedure TTransGauge.setBitmap;
begin
  FBmp.width := width;
  FBmp.height := height;
  FHlp.width := width;
  FHlp.height := height;
end;

procedure TTransGauge.setTrans(b: boolean);
begin
  if b = FTrans then exit;
  FTrans := b;
  invalidate;
end;

procedure TTransGauge.setFrame(b: boolean);
begin
  if b = FFrame then exit;
  FFrame := b;
  invalidate;
end;

procedure TTransGauge.setFlat(b: boolean);
begin
  if b = FFlat then exit;
  FFlat := b;
  invalidate;
end;

procedure TTransGauge.setShadow(b: boolean);
begin
  if b = FShadow then exit;
  FShadow := b;
  invalidate;
end;

procedure TTransGauge.setKind(k: TGaugeKind);
begin
  if k = FKind then exit;
  FKind := k;
  FontSwitch;
  resize;
end;

procedure TTransGauge.setFore(c: TColor);
begin
  c := ColorToRGB(c);
  if c = FFore then exit;
  FFore := c;
  FR := GetRValue(c);
  FG := GetGValue(c);
  FB := GetBValue(c);
  setrgb;
  invalidate;
end;

procedure TTransGauge.setDisCl(c: TColor);
begin
  c := ColorToRGB(c);
  if c = FDisCl then exit;
  FDisCl := c;
  FRD := GetRValue(c);
  FGD := GetGValue(c);
  FBD := GetBValue(c);
  setrgb;
  if not enabled then invalidate;
end;

procedure TTransGauge.setFrameCl(c: TColor);
begin
  c := ColorToRGB(c);
  if c = FFrameCl then exit;
  FFrameCl := c;
  invalidate;
end;

procedure TTransGauge.setDisF(c: TColor);
begin
  c := ColorToRGB(c);
  if c = FDisF then exit;
  FDisF := c;
  if not enabled then invalidate;
end;

procedure TTransGauge.setF2Cl(c: TColor);
begin
  c := ColorToRGB(c);
  if c = F2Cl then exit;
  F2Cl := c;
  invalidate;
end;

procedure TTransGauge.Loaded;
begin
  inherited;
  Resize;
end;

procedure TTransGauge.Resize;
begin
  inherited;
  if width > 1000 then width := 1000
  else if width < 10 then width := 10;
  if height > 1000 then height := 1000
  else if height < 10 then height := 10;
  if assigned(FBmp) then setBitmap;
  setbereich;
end;

procedure TTransGauge.setBereich;
var i: integer;
begin
  FBer := FMax - FMin;
  FStelle := Fpos - FMin;
  if FKind = tgHorizontalBar then i := width - 2
  else i := height - 2;
  FLang := round(FStelle * i / FBer);
  repaint;
end;

procedure TTransGauge.setMax(i: integer);
begin
  if i > 1000000 then i := 1000000;
  if (FMax = i) or (i <= FMin) then exit;
  FMax := i;
  if Fpos > i then FPos := i;
  setBereich;
end;

procedure TTransGauge.setMin(i: integer);
begin
  if i < -1000000 then i := -1000000;
  if (FMin = i) or (i >= FMax) then exit;
  FMin := i;
  if FPos < i then FPos := i;
  setbereich;
end;

procedure TTransGauge.setPos(i: Integer);
begin
  if i < FMin then i := FMin;
  if i > FMax then i := FMax;
  if (FPos = i) or not enabled then exit;
  FPos := i;
  setBereich;
  if assigned(FNotify) then FNotify(self);
end;

procedure TTransGauge.WMText(var M: TMessage);
begin
  DefaultHandler(M);
  invalidate;
end;

procedure TTransGauge.setText(t: TGaugeText);
begin
  if FText = t then exit;
  FText := t;
  invalidate;
end;

procedure TTransGauge.makefont;
var
  LogFont: TLogfont;
begin
  GetObject(FBmp.Canvas.Font.Handle, sizeof(Logfont), @Logfont);
  Logfont.lfEscapement := ord(FDrctn = tgVertical) * 900;
  FBmp.Canvas.Font.Handle := CreateFontIndirect(Logfont);
end;

procedure TTransGauge.setFF(t: TIntens);
var i: integer;
begin
  if t > 5 then t := 5
  else if t < 0 then t := 0;
  if t = FF then exit;
  FF := t;
  i := ord(not FFlat);
  case FF of
    0: FFF := 1 + i * 15;
    1: FFF := 7 - i;
  else FFF := 6 - FF - i;
  end;
  invalidate;
end;

procedure TTransGauge.setDrctn(d: TFontKind);
begin
  if d = FDrctn then exit;
  FDrctn := d;
  FontSwitch;
  invalidate;
end;

procedure TTransGauge.CMFontChanged(var aMsg: TMessage);
begin
  FBmp.Canvas.Font := Font;
  FontSwitch;
  invalidate;
end;

procedure TTransGauge.FontSwitch;
var tm: TTextMetric;
begin
  if FDrctn = tgHorizontal then exit;
  GetTextMetrics(FBmp.Canvas.Handle, tm);
  if (tm.tmPitchAndFamily and TMPF_TRUETYPE = 0)
    then begin
    Font.Name := 'Arial';
    Font.Charset := DEFAULT_CHARSET;
    FBmp.Canvas.Font := Font;
  end;
end;

procedure TTransGauge.setEnabled(Value: Boolean);
begin
  inherited;
  setrgb;
end;

procedure TTransGauge.settranscol;
var c: TColor;
begin
  c := ColorToRGB(color);
  if odd(c) then c := c - 1
  else c := c + 1;
  FBmp.Transparentcolor := c;
  FTR := GetRValue(c);
  FTG := GetGValue(c);
  FTB := GetBValue(c);
end;

procedure TTransGauge.CMCOLOR(var M: TMessage);
begin
  inherited;
  settranscol;
end;

end.
